Rc Helicopter Legend 6CH 3D Flybarless Direct Drive

REDEFINE THE FLIGHT EXPERIANCE

PRODUCT PARAMETERS

Brand: GOOSKY
Model: RS5
Overall Height: 320mm
Width: 203mm
Main Gear: 107T
Front Tail Pulley: 75T
AIRFRAME weight (no battery): approx 2.68kg
Main Shaft Diameter:12mm
Feathering Shaft Diameter:8mm
Tail Spindle Diameter: 4mm
One-piece Tail Shaft Diameter: 6mm
Tail belt width:6mm
Main Gear Ratio (Main Motor Gear 12T):8.917
Main Gear Ratio (Main Motor Gear 13T):8.231
Tail Ratio(Tail Pulley 16T):4.6875
Tail Rotor Diameter:
259mm(with the included 95mm tail blades)
Battery Compartment Size(length*width*height): 245*52*60mm

THE RS5 HELICOPTER IS THE LATEST ADDITION TO THEGOOSKY LEGEND FAMILY,INHERITING GOOSKY'S RE-NOWNED EXCELLENCE IN 3D HELICOPTER PERFOR-MANCE.

In contrast to conventional designs in the 550 class,the RS5 features a thickened main shaft and tail shaft with diameters of 12mm and 6mm respectively.It boasts a one-piece tail shaft and hub with a large diameter (approx 30mm) tail boom allowing for enhanced agility through its over sized swash plate assembly.
The main frame is designed in a strong cage struc-ture with thickened side panels,providing the RS5 with an unprecedented level of overall rigidity.Additionally,the newly designed streamlined canopy enhances thevisual appeal.
The RS5 is designed for mini swash servos but both mini servos and standard servos are interchangeable in the airframe without the need for replacement parts.

PRODUCT FEATURES

01.The core metal components are made from 7075 aviation-grade aluminumalloy crafted through high-precision milling processes.

02.The RS5 uses high preci-sion,high speed,and low noise bearings for all rotating components.

03.The whole helicopter uses 12.9 high-strength alloy steel screws.

04.The oversize swashplate increases cyclic pitch flexibility while the larger high-precision bearings greatly improve load-bearing capacity.Cu-tom-made high-precision link sensure smooth and fluid movements.

05.The specially designed main rotor head features a sym-metrical structure with feathering shaft teeter hinge.Precision head components machined from special materials,ensures highly accurate and stable fight performance.

06.The length of the main control pitch linkage is the same as the CCPM servo to swash linkages,all with the turn buckle threads designed for convenient tuning.The threaded depth of the links is designed to screw completely into the turn buckles,making installation and maintenance simpler.Re-inforced high-precision plastic ball links provide for higher reliability and smooth operation.

07.Light weight φ12mm main shaft specially manufactured through a variety of special processes ensures high strength while retaining the necessary toughness.

08.The integrated 6mm tail shaft with hub is engineered tosmooth the vibrations generated during high-speed tail rotations.Manufactured using single stage precision machining on high-precision equipment,it ensures a light weight structure with excellent precision and rigidity.

09.A precisely calculated tail pitch control system with a specially designed weighted tail blade grips ensures more accurate control with less effort.

10.Light weight and high-strength landing gear made from specialized materials allows for easy assembly and maintenance.

11.The design of the integrated main motor counter bearing bracket and the one-piece main shaft alignment bracket provide the helicopter with high-precision and high-strength

12.The cage structure main frame design combined with thickened side panels provides the RS5 with an exceptional level of rigidity across the entire structure.

13.The RS5 is compatible with both mini servos and standard servos,offering customers flexible options to suit their preferences.

14.The tail servo is a standard size servo

15.The tail push rod is secured with a double-head threaded connection eliminating the need for glue.This design offers high strengthand makes disassembly and installation easy.

16.The RS5 canopy features aquick-release design,
making battery replacement simple and convenient.

17.The newly designed streamlined canopy is even more stunning and elegant.

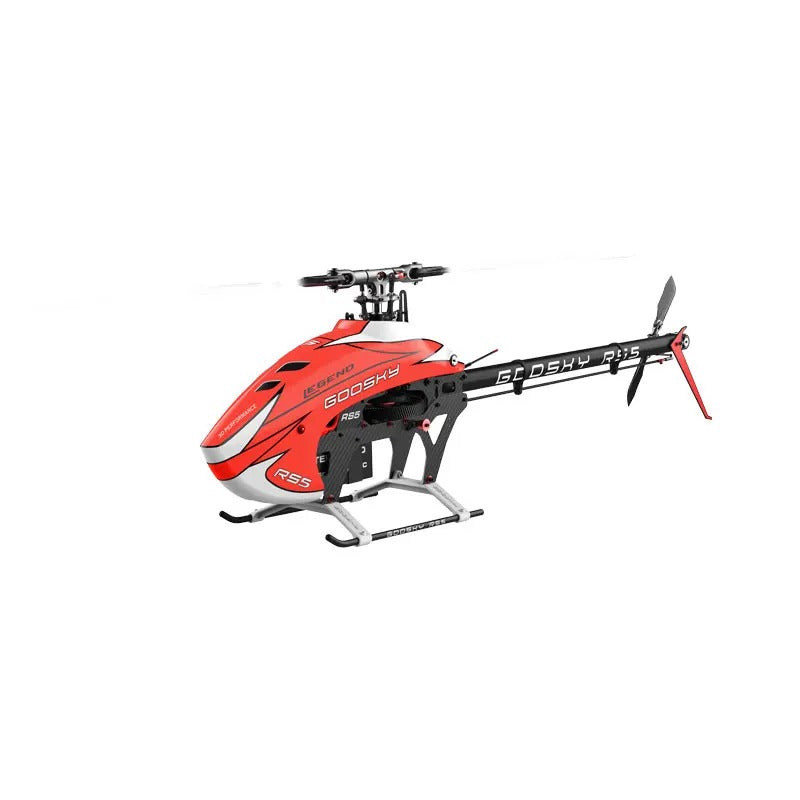

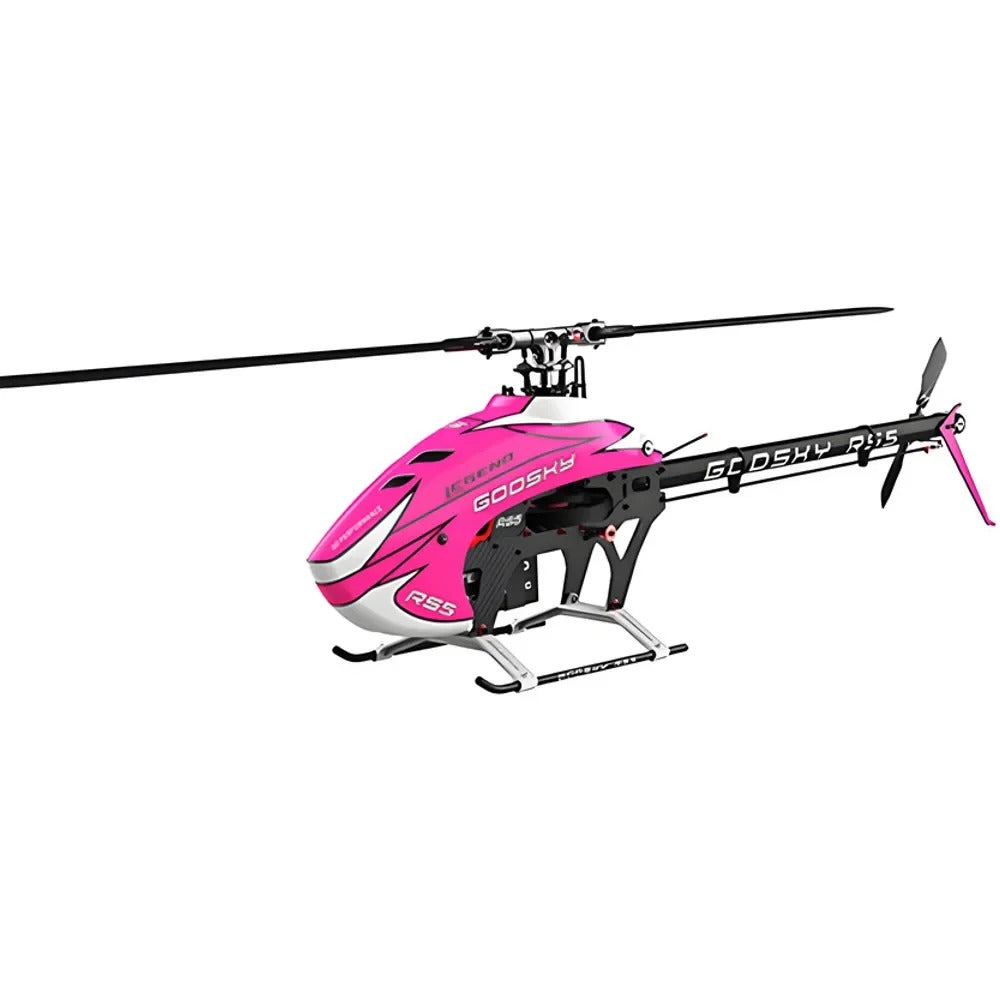

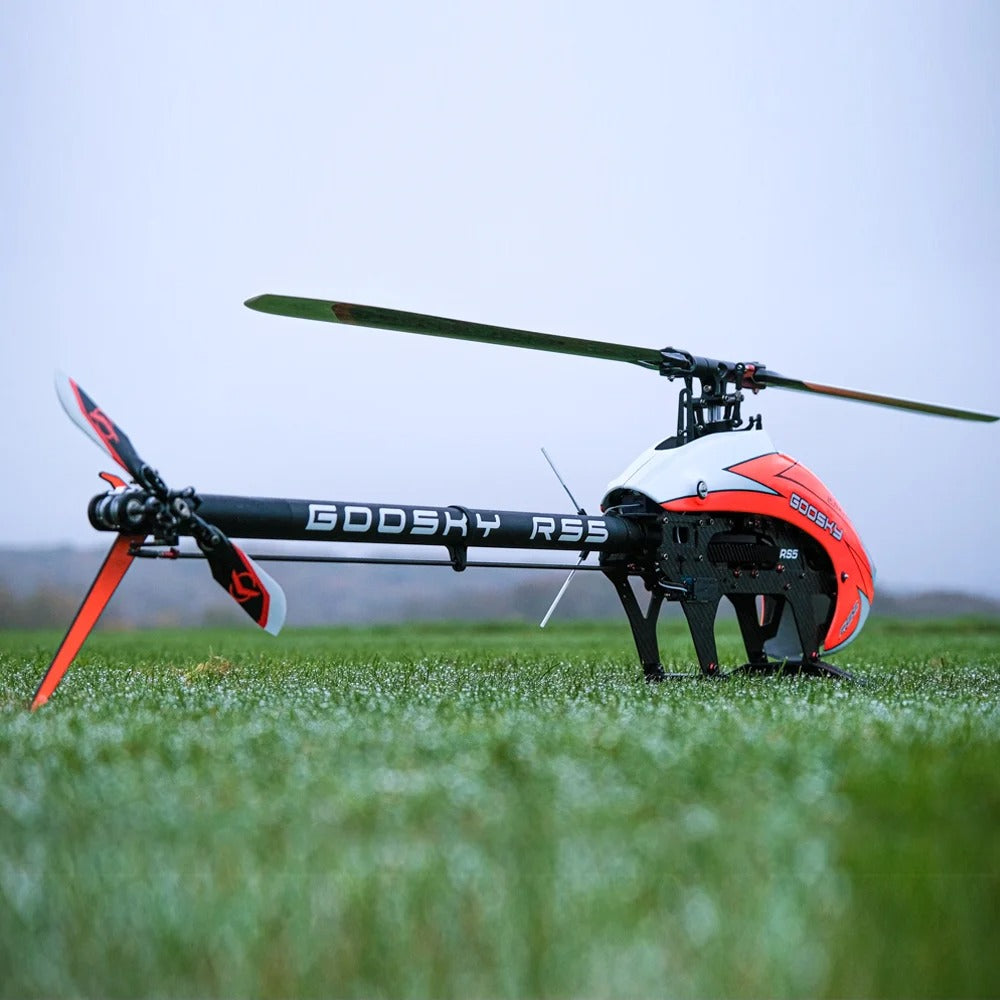

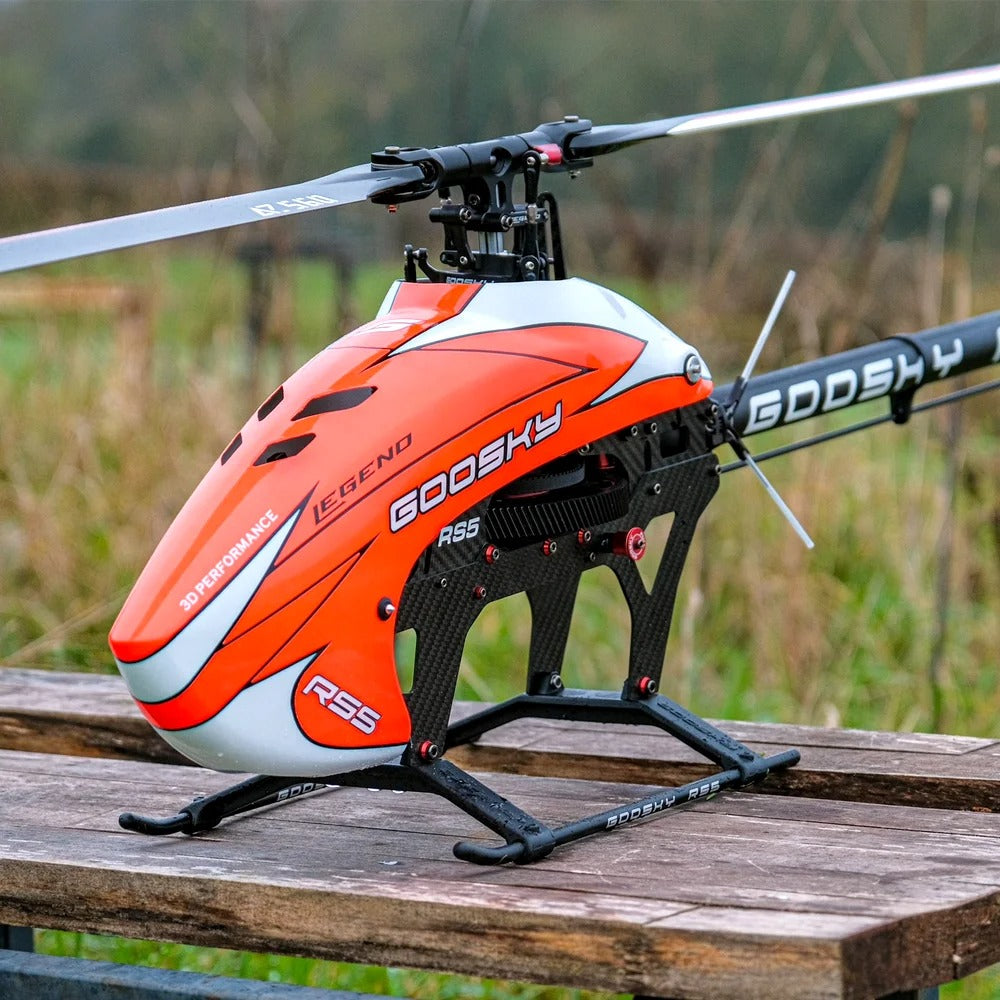

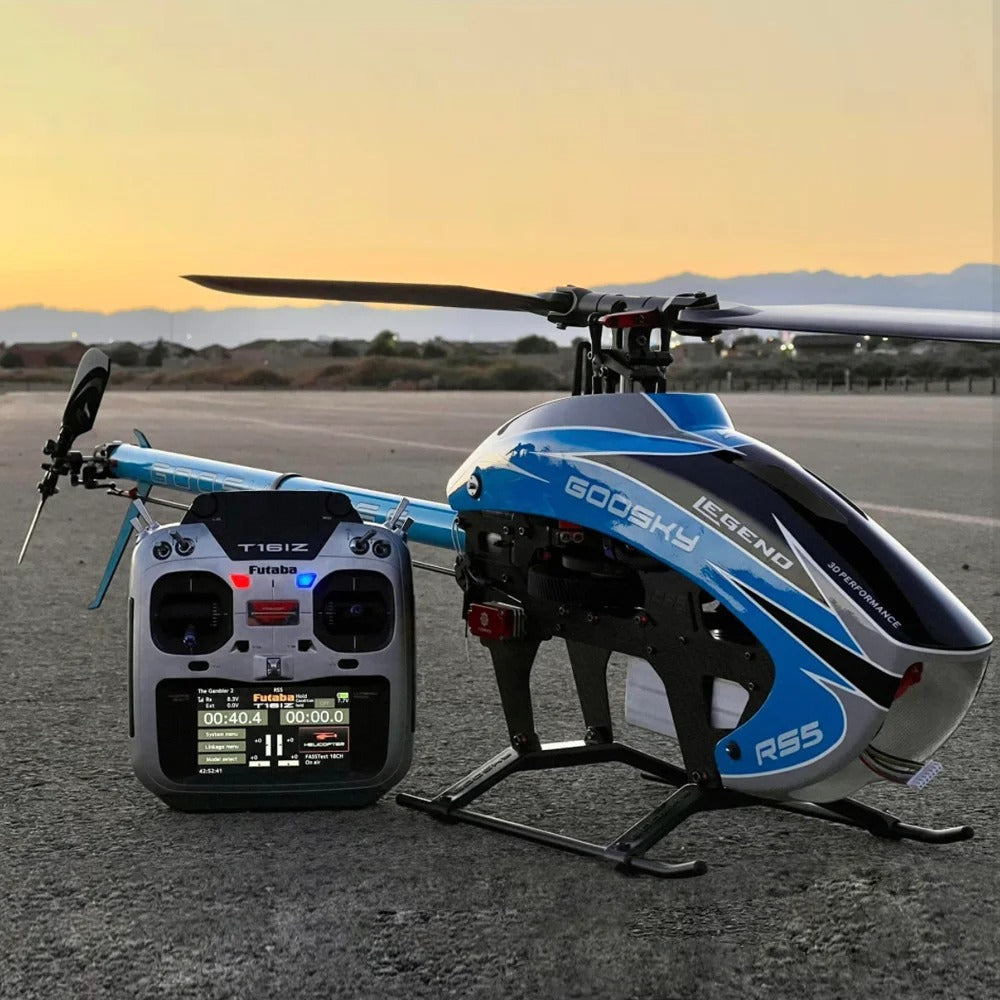

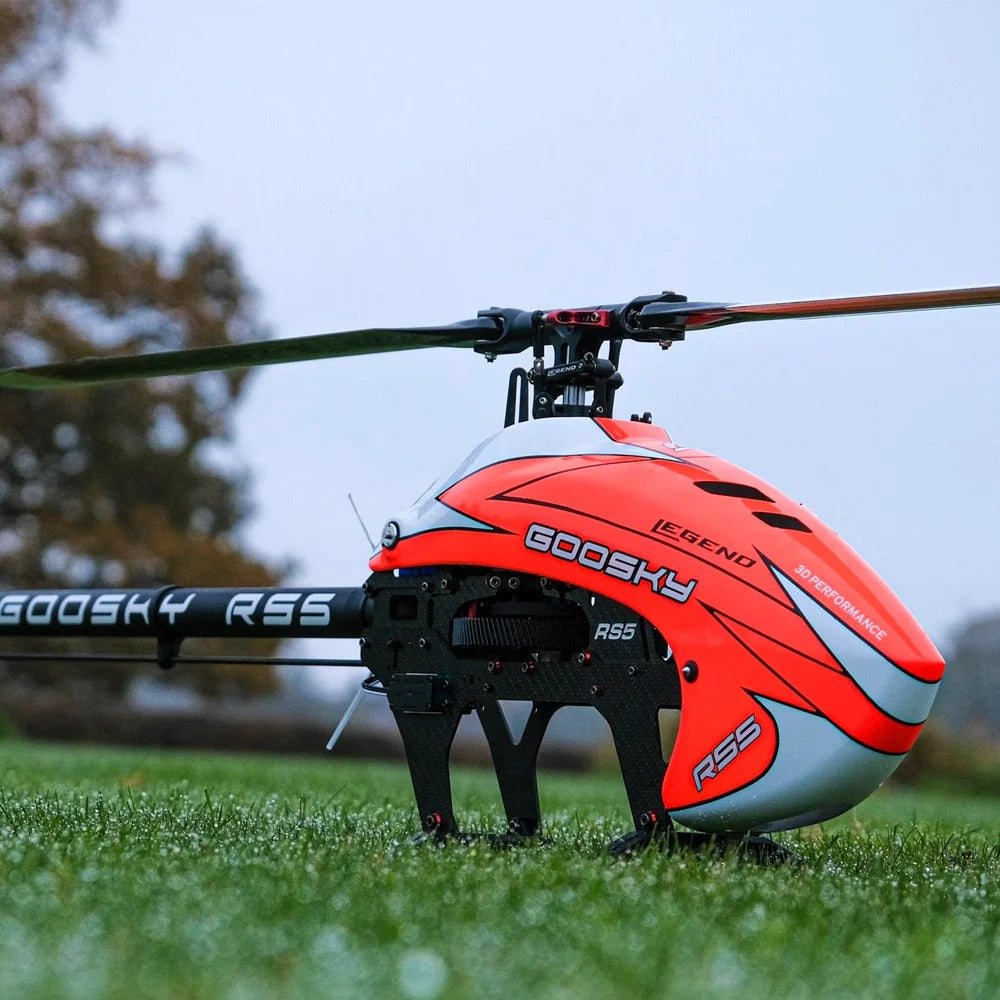

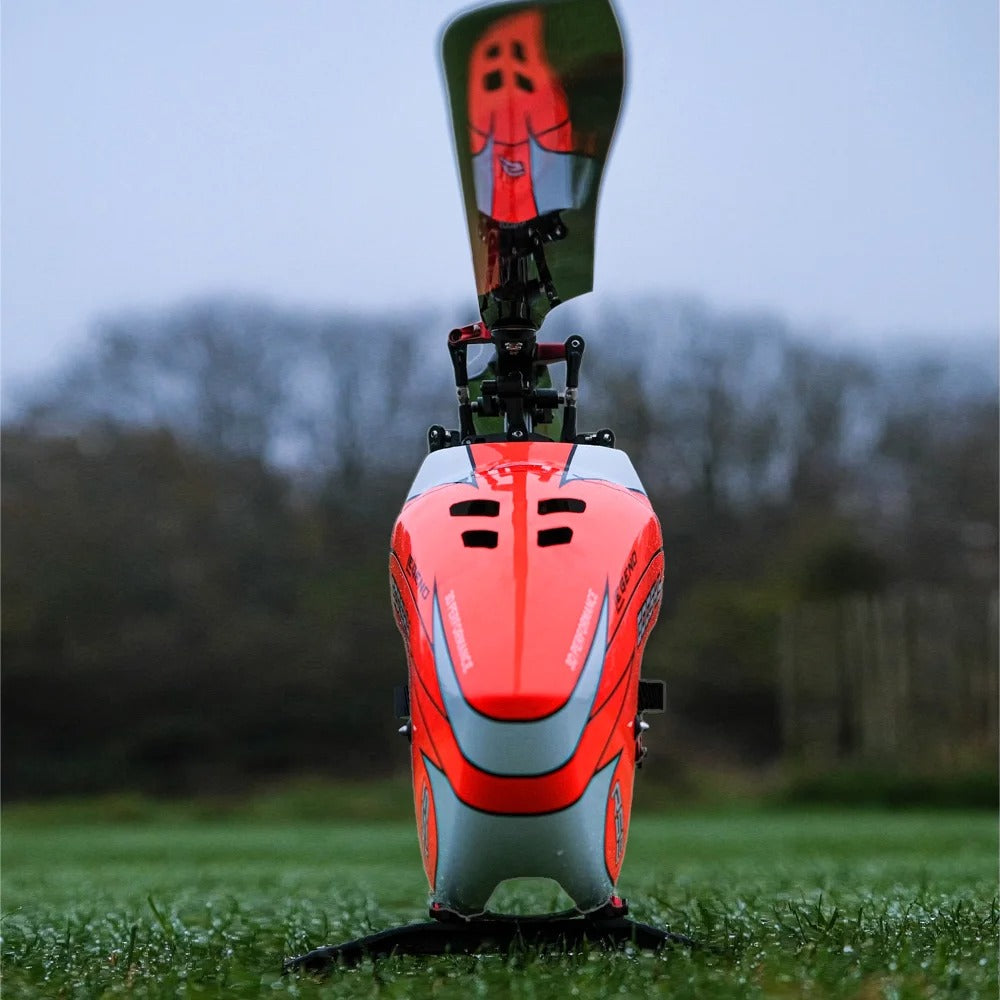

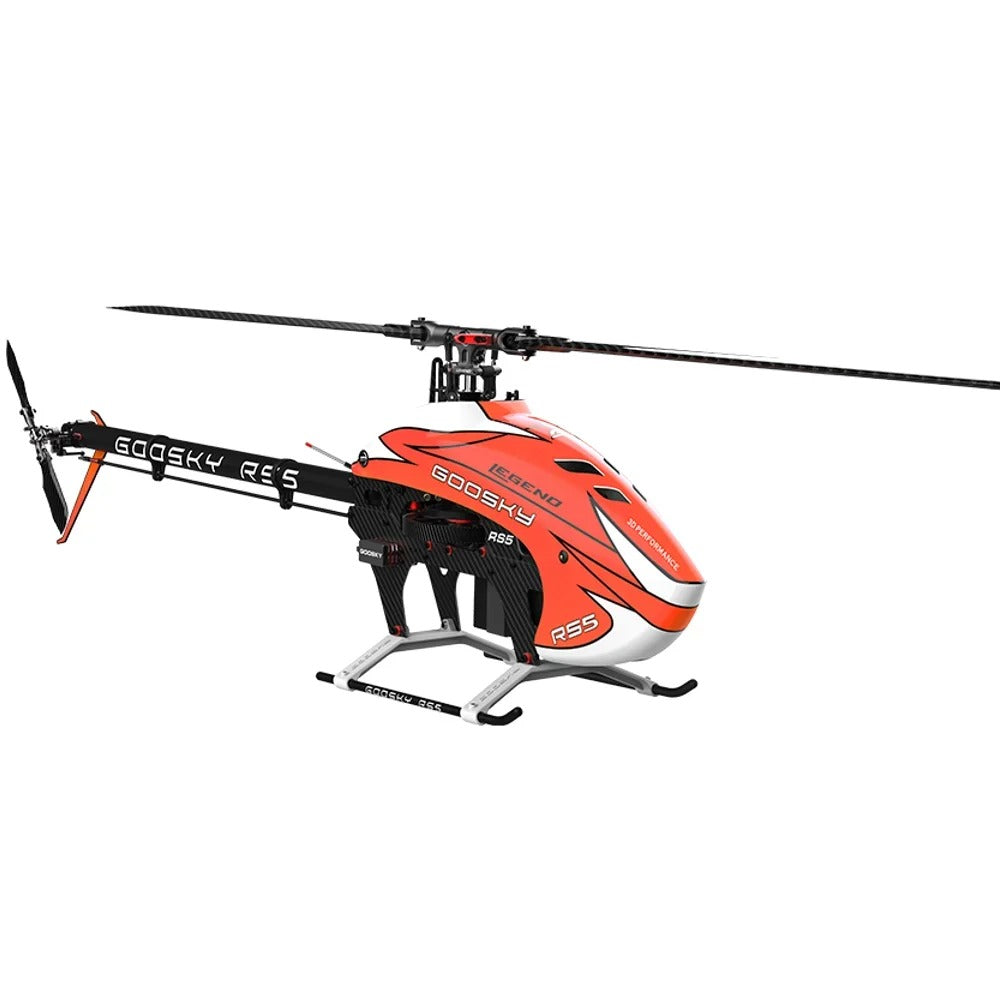

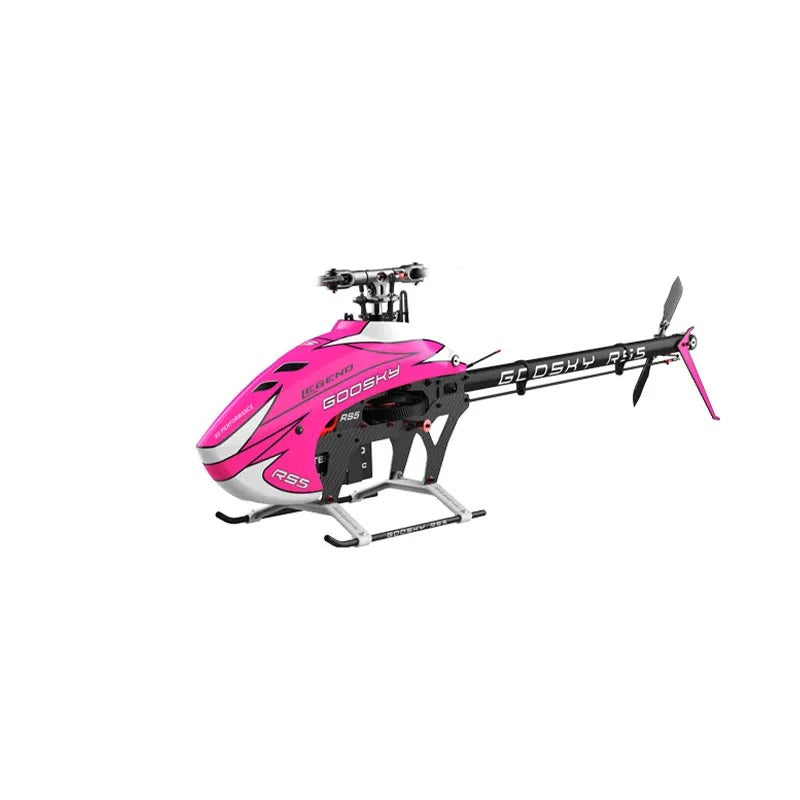

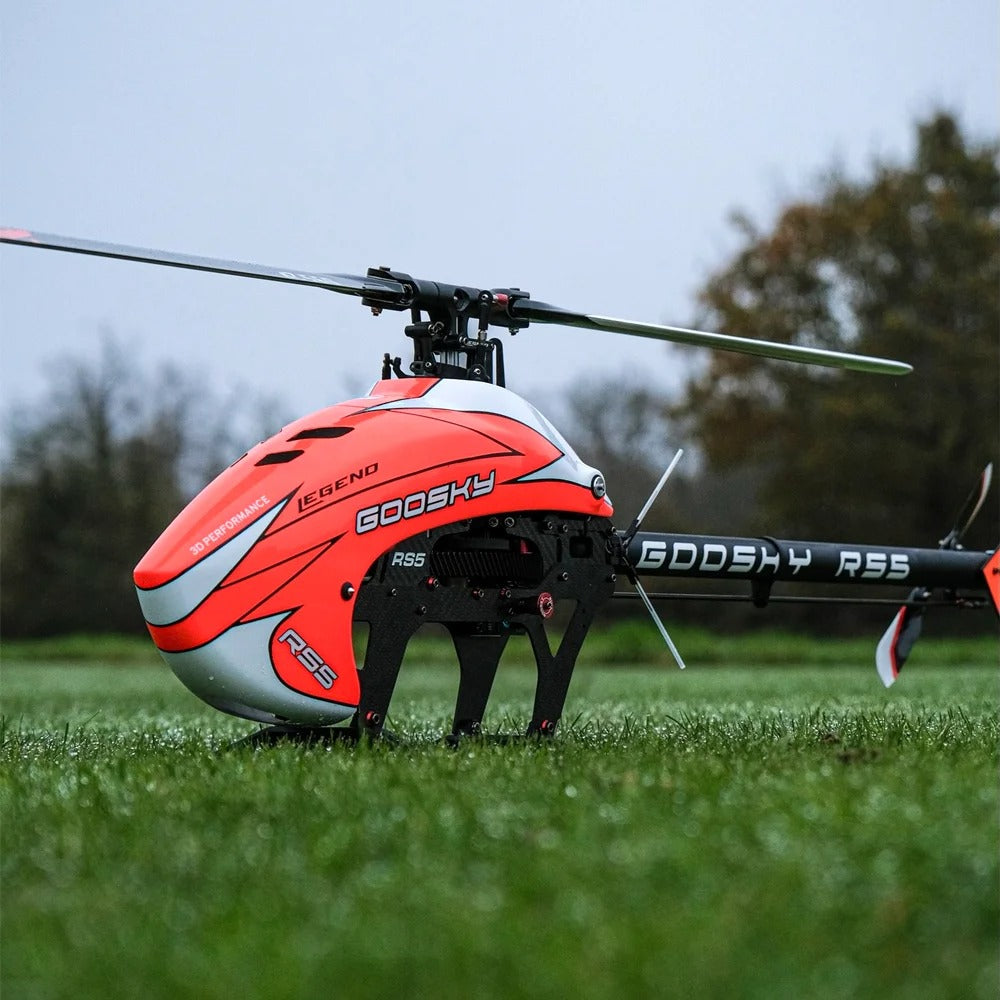

PRODUCT DISPLAY

PRODUCT KITS

KIT 1:
RS5 HELICOPTER FRAME*1 PC
(NOTE:NO ELECTRONICS,NO BLADES)
KIT 2:
RS5 HELICOPTER FRAME*1 PC
(NOTE:NO ELECTRONICS,WITH AZ 560 &95 BLADES INCLUDED)
